NitriStar Biofilm System
Modular expansion for nitrification
Downloads
Consulting on NitriStar Biofilm System?
We review your requirements and advise you on the right system design.
Overview

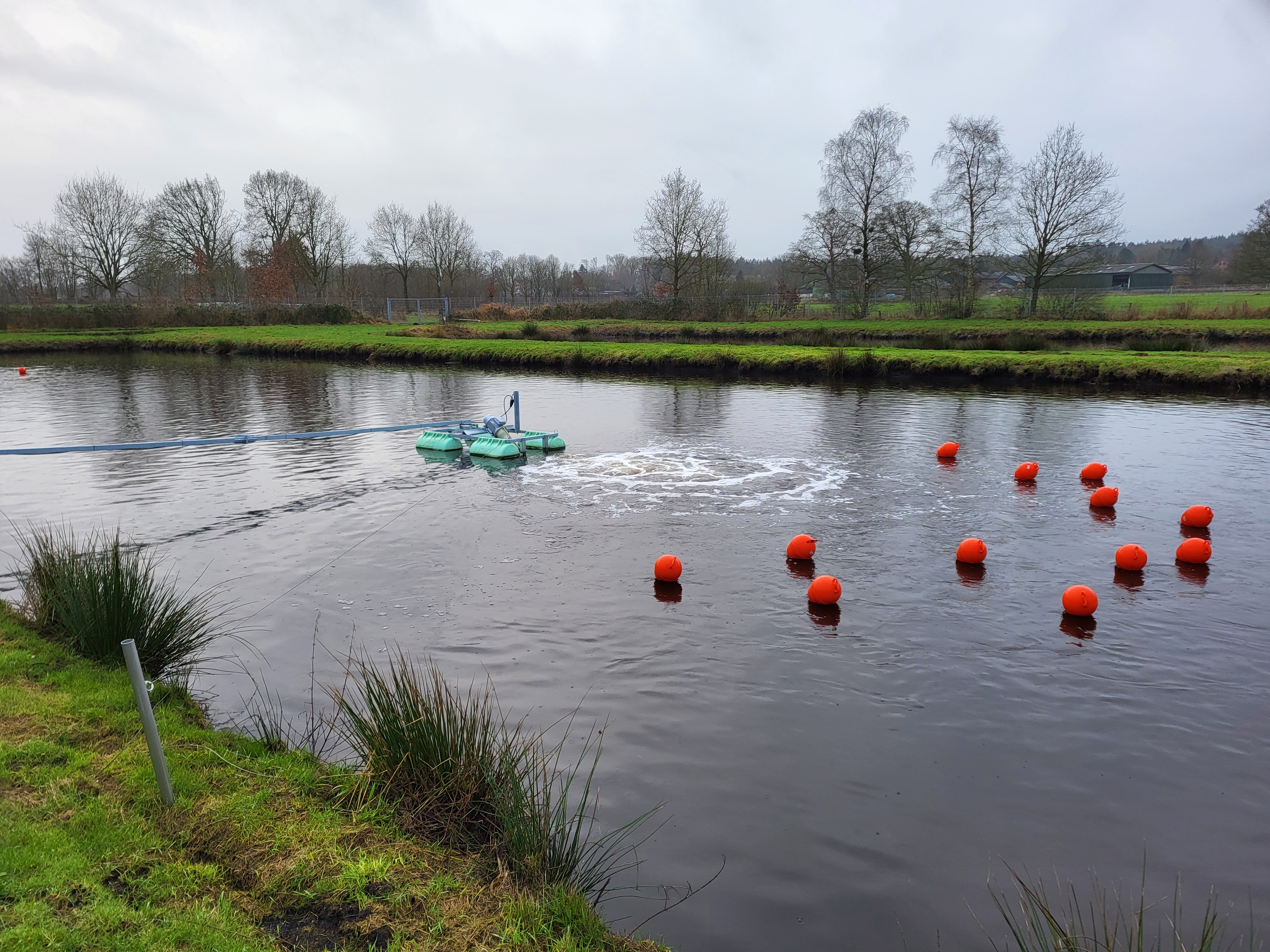

The FUCHS NitriStar System enables the simple and economical retrofitting of existing lagoons with additional growth surface area and oxygen for nitrification.
The system consists of two components:
FUCHS OxyStar® aerator
Multiple FUCHS NitriStar modules

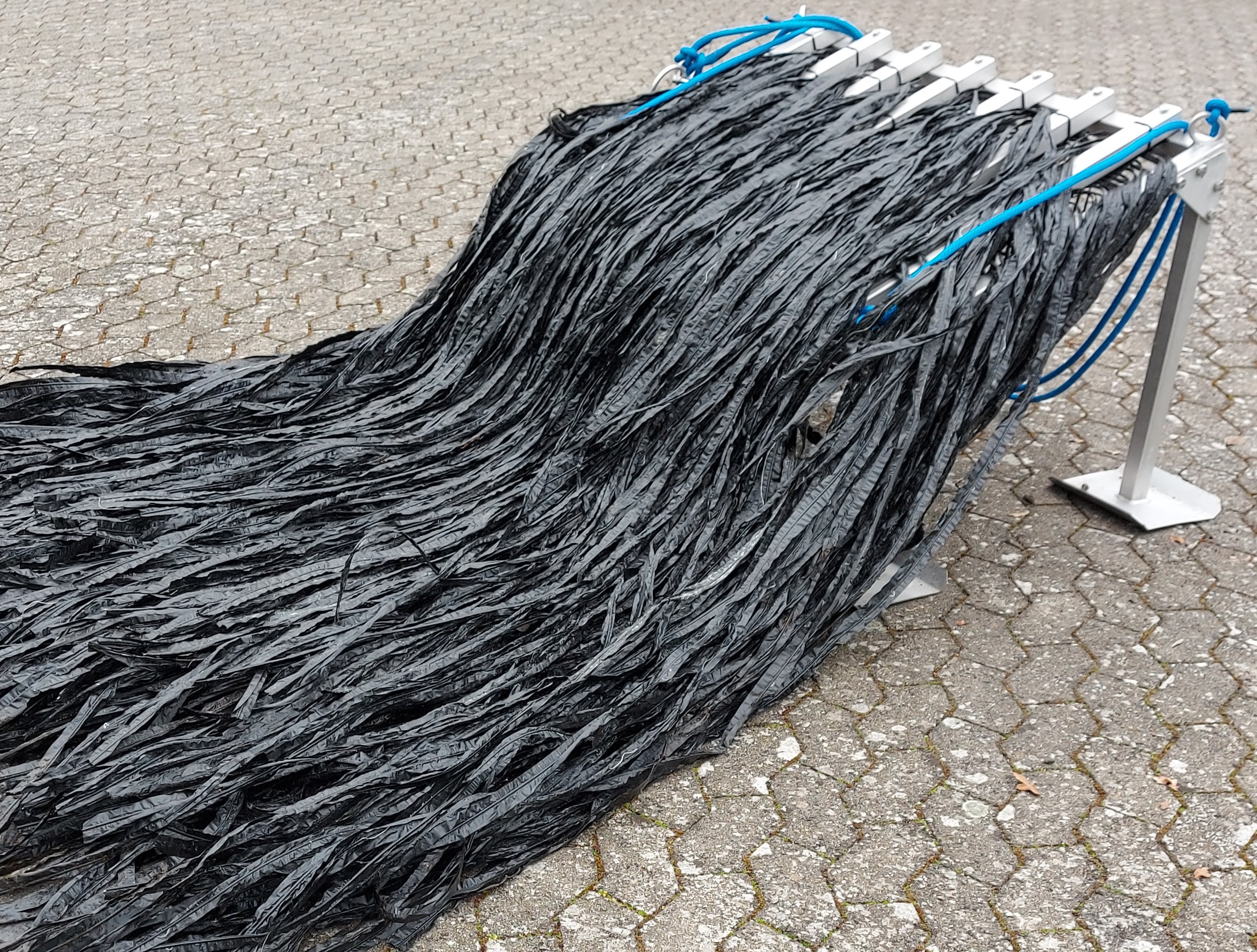

A NitriStar module consists of:
Ground anchoring
Flexible surface for nitrifying bacteria
Device for installation and subsequent removal

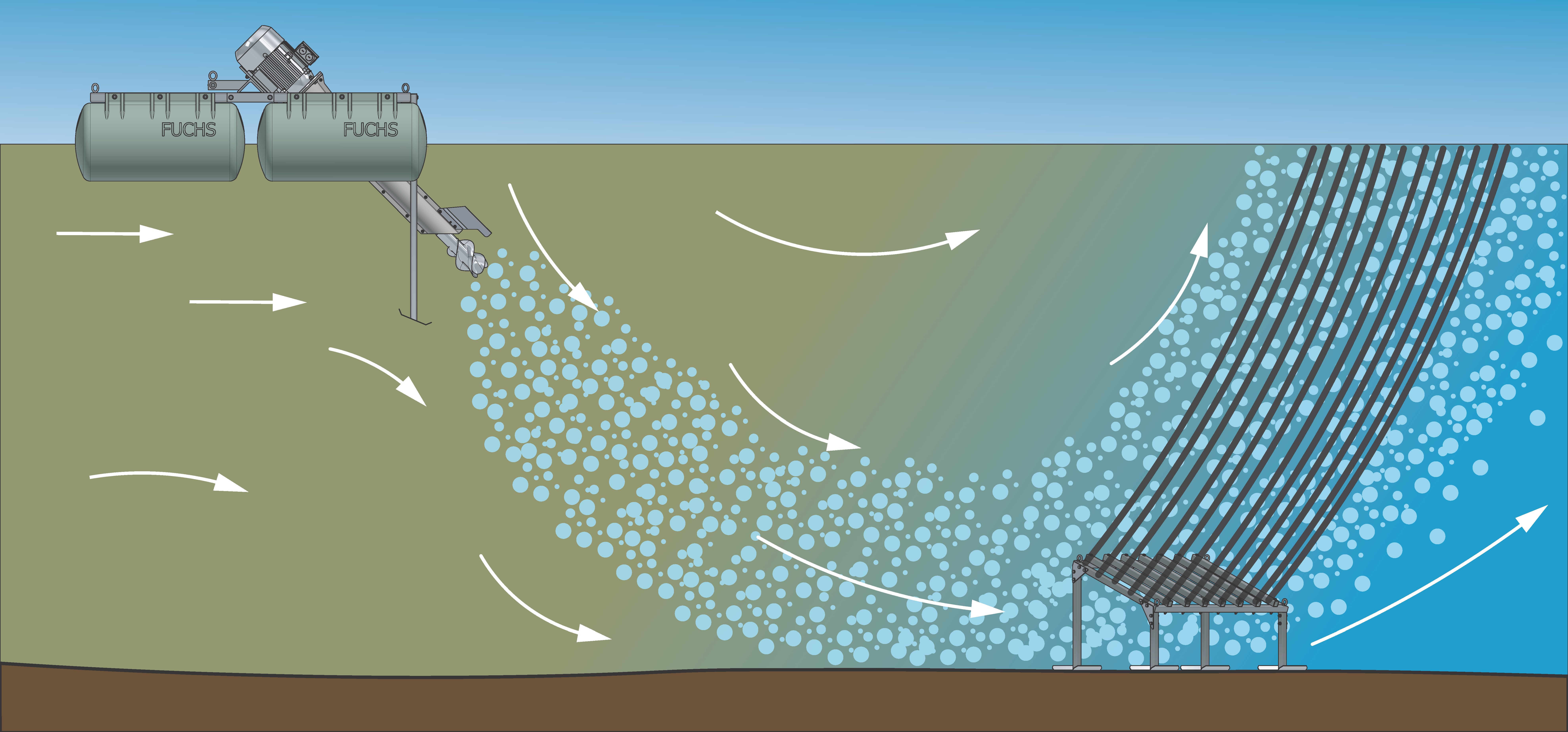

The aim of the process is the biological conversion of ammonium to nitrate (nitrification). The FUCHS OxyStar® aerator supplies the wastewater with the oxygen required for this purpose and conveys the water-air mixture to the FUCHS NitriStar modules.

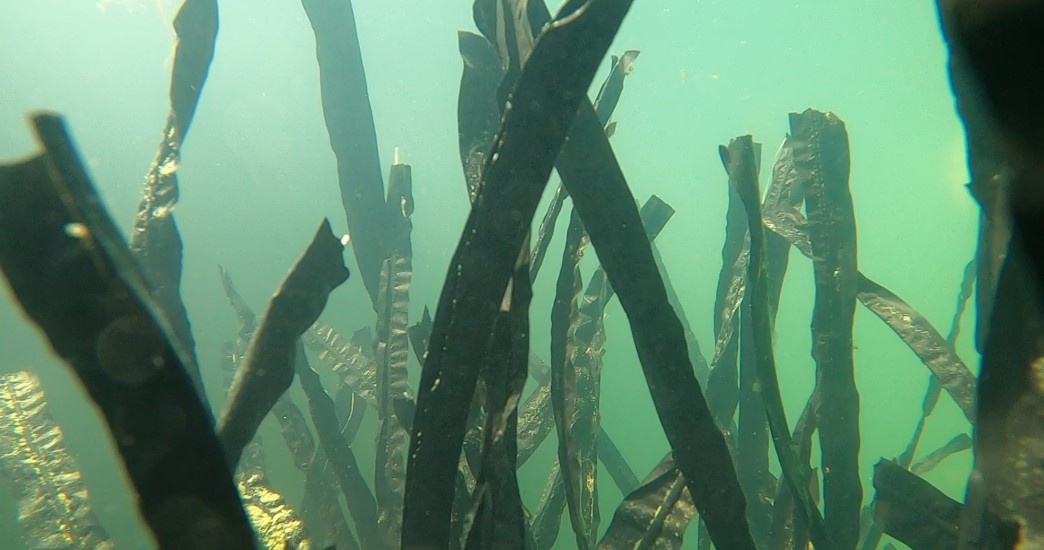

The FUCHS NitriStar modules provide a large growth surface area that the nitrifying bacteria colonise. Excess biomass detaches on its own and can settle without clogging the modules. Thanks to the vertical and horizontal flow through the modules, they are also largely independent of lagoon depth.
How they work together
NitriStar Biofilm System works together with other FUCHS products. Only in combination do they form the complete process.

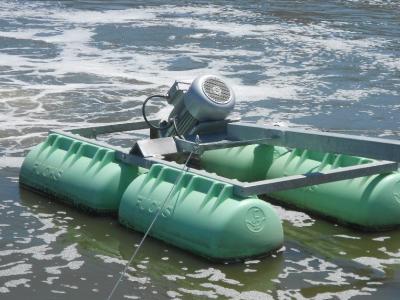

OxyStar® Aerator
Introduces the oxygen that the nitrifying bacteria need and keeps the water in motion.
To the product
NitriStar Biofilm System
Provide a large growth surface for the nitrifying bacteria that convert ammonium to nitrate. Flow passes through them vertically and horizontally, making them largely independent of the lagoon depth.
Benefits
Retrofitting and rehabilitation
For retrofitting and rehabilitating existing systems in cases of overload or increased requirements.
Ideal combinations
Ideal in combination with aerated and unaerated lagoons.
Custom-tailored
Flexible system based on modular design, allowing individual adaptation to lagoon depth and treatment performance.
Efficient and robust aeration technology
High aeration efficiency independent of water depth, along with robust, long-proven technology for reliable operation.
Good flow characteristics
NitriStar modules can be operated with vertical and horizontal flow.
Easy to maintain and high-performing
Simple maintenance through removable modules and a large colonisation surface for nitrifying bacteria.
